Comparison of MDCK-MDR1 and Caco-2 Cell-Based Permeability Assays
Cell-based permeability assays are critical tools in pharmacokinetics, particularly in the early stages of drug development. They help predict how compounds will behave in biological systems, especially regarding absorption and distribution. Both MDCK-MDR1 and Caco-2 cell models have distinct advantages and limitations that impact their utility in drug discovery and development.

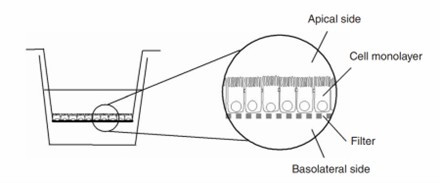

Fig. 1 Diagram of a Caco-2 monolayer grown on a permeable filter support. (Hubatsch I, et al., 2007)
Why Use Cell-Based Permeability Assays?
Cell-based permeability assays are essential for understanding drug absorption across biological membranes. They simulate the intestinal barrier and provide insights into how drugs are transported and metabolized. By utilizing these assays, researchers can predict the bioavailability of new compounds, identify potential drug-drug interactions, and streamline the drug development process. The choice between MDCK-MDR1 and Caco-2 cells largely depends on the specific research objectives and the characteristics of the compounds being studied. These essays offer benefits such as:
- Lower cost and relatively high throughput compared to in vivo.
- Not affected by physiological factors, therefore offer a snapshot of absorption.
- More data therefore models covering greater chemical space.
What Are the Differences Between Caco-2 and MDCK-MDR1 Cells?
| MDCK-MDR1 cells | Caco-2 cells | |
| Origin and characteristics | Madin-Darby canine kidney (MDCK) cells were first established in the 1950s from the kidney of a female Irish setter. These epithelial cells are widely used in biological research due to their ability to form tight junctions and a polarized monolayer. The MDCK-MDR1 variant is genetically modified to overexpress the P-glycoprotein (MDR1), a well-known efflux transporter that significantly influences drug absorption and disposition. | Caco-2 cells are derived from a human colorectal adenocarcinoma and were established in the 1970s. These cells differentiate into enterocyte-like cells, forming a monolayer that closely resembles the human intestinal epithelium. They are characterized by their ability to form tight junctions, which is essential for mimicking the intestinal barrier. |
| Role in drug transport | MDR1, or P-glycoprotein, plays a pivotal role in mediating the efflux of a wide range of drugs and xenobiotics from cells. This protein is crucial for protecting tissues from potentially harmful compounds. | The formation of tight junctions in Caco-2 cells is a critical feature that enhances their utility in permeability studies. Caco-2 cells exhibit a range of transport mechanisms, including passive diffusion, facilitated diffusion, and active transport, making them ideal for studying the absorption of various compounds, including hydrophilic and lipophilic drugs. |
| Applications in permeability studies | MDCK-MDR1 cells are particularly useful for assessing the permeability of compounds that are substrates for P-glycoprotein. These cells allow researchers to evaluate both the extent of drug absorption and the influence of efflux transporters on drug bioavailability. Such studies are integral for identifying compounds that may require modification to enhance their therapeutic efficacy. | Caco-2 cells are extensively used to evaluate the intestinal absorption of drugs. They provide a robust model for studying the permeability of both small molecules and larger biomolecules. Research has demonstrated that the absorption profiles of compounds in Caco-2 assays correlate well with in vivo data, making them a standard model in the pharmaceutical industry. |
Comparative Analysis of MDCK-MDR1 and Caco-2 Assays
Cell culture conditions
MDCK-MDR1 cells are relatively easy to culture and can be maintained under standard conditions. Their rapid proliferation and straightforward handling make them a convenient choice for high-throughput assays. In contrast, Caco-2 cells require a more extended period to differentiate properly into enterocyte-like cells, typically taking 21 days. This extended culture time can be a limiting factor in high-throughput screening.
Transport mechanisms
The transport mechanisms differ significantly between the two cell lines. MDCK-MDR1 cells primarily focus on the efflux of drugs via P-glycoprotein, making them suitable for studying compounds impacted by this transporter. Conversely, Caco-2 cells represent a more comprehensive model for various transport processes, including both absorption and efflux pathways. This diversity allows for a broader range of drug interactions to be assessed.
Permeability characteristics
Permeability characteristics also vary between the two models. MDCK-MDR1 cells are particularly useful for evaluating the impact of efflux transporters on drug permeability, providing insights into the bioavailability of compounds that are substrates for MDR1. Caco-2 cells, on the other hand, are better suited for assessing overall intestinal absorption, reflecting the complex interactions in the gastrointestinal tract.
Advantages and Limitations of MDCK-MDR1 and Caco-2 Assays
| MDCK-MDR1 assays | Caco-2 assays | |
| Advantages | The primary advantages of MDCK-MDR1 assays are their speed and reproducibility. These cells can be cultured quickly and provide consistent results in permeability studies. Additionally, their specific focus on P-glycoprotein interactions allows for targeted investigations of drugs that may be affected by this transporter. | Caco-2 cells provide a more physiologically relevant model for studying intestinal absorption. Their ability to form tight junctions and differentiate into enterocyte-like cells makes them ideal for mimicking the human intestinal barrier. The correlation of Caco-2 results with in vivo absorption data further validates their use in drug development. |
| Limitations | MDCK-MDR1 cells do not fully replicate the complexity of the intestinal epithelium, as they lack the differentiated cell types found in Caco-2 models. This limitation can impact the relevance of the findings to in vivo conditions. | The primary limitation of Caco-2 assays is the lengthy culture time required to achieve full differentiation. This can slow down the screening process compared to MDCK-MDR1 assays. Additionally, variability in differentiation and transport activity can lead to inconsistent results. |
Creative Bioarray Relevant Recommendations
| Service Types | Description |
| In Vitro Permeability and Transporters | Creative Bioarray provides several in vitro permeability and transporter assays to evaluate drug permeability and predict drug absorption and distribution, including Caco-2 permeability assay, MDCK permeability assay, Parallel artificial membrane permeability assay (PAMPA), and a panel of transporter assays on several of the most relevant transporters such as canine P-glycoprotein (P-gp), BCRP, BSEP, OAT1, OAT3, OATP1B1, OATP1B3, OCT1, and OCT2. |
| MDR1-MDCK Permeability Assay | Creative Bioarray is a reliable MDR1-MDCK permeability assay provider. After years of development, Creative Bioarray has become an expert in drug discovery and development. Using a highly automated approach, we offer this in vitro ADME screening service to determine drug permeability. |
| Caco-2 Permeability Assay | Creative Bioarray is offering a Caco-2 permeability assay to help determine the absorption and the bioavailability of drug candidates, facilitating the lead optimization process in drug discovery. |
Reference
- Hubatsch I, et al. (2007). "Determination of drug permeability and prediction of drug absorption in Caco-2 monolayers." Nat Protoc. 2 (9): 2111-9.
